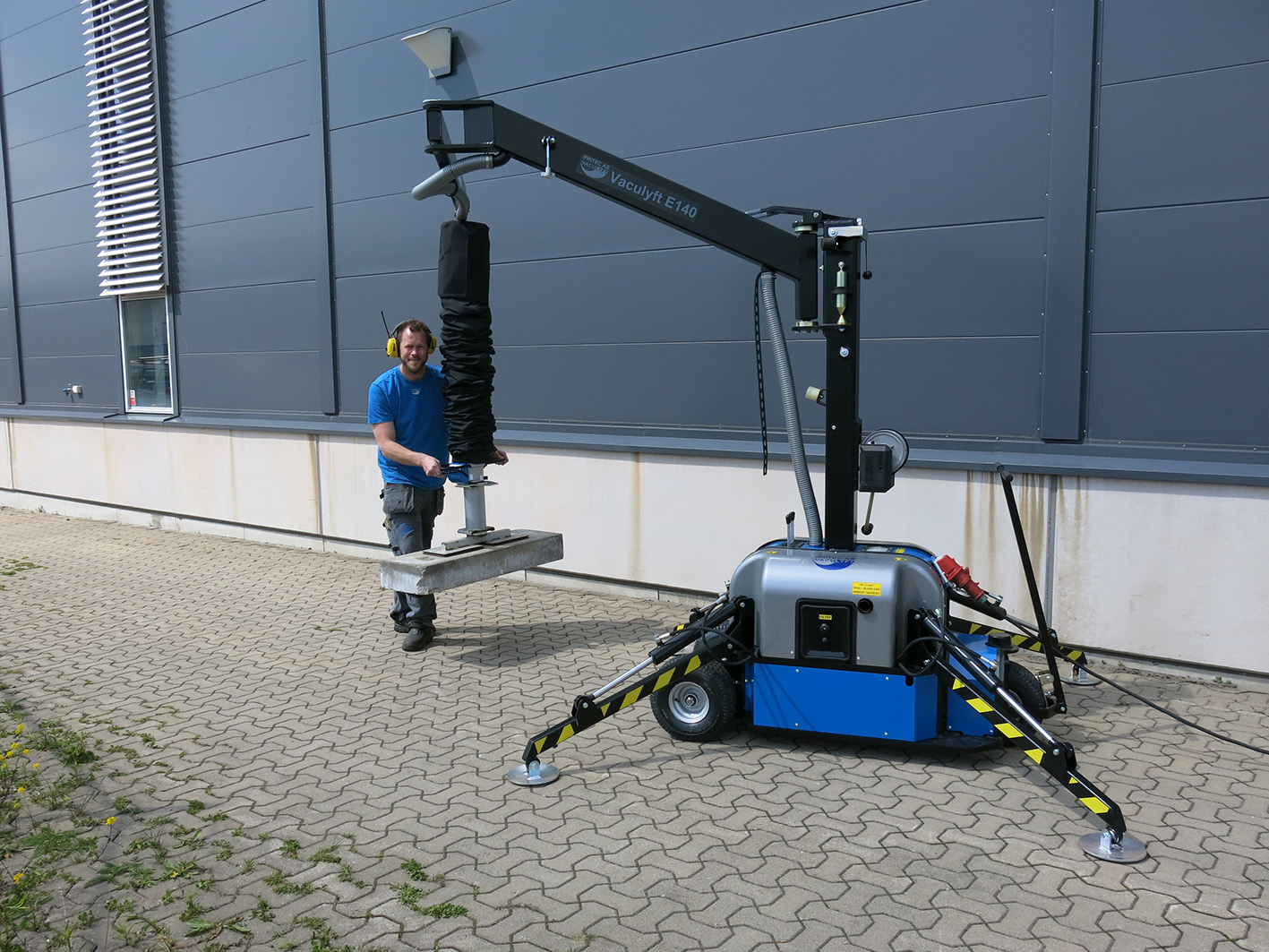

Pritec Vaculyft E
Pritec Vaculyft E is an electrically powered lifting unit with hydraulic support legs. It is ideal for lifting paving stones, tiles and other building materials with precision and safety. With a low noise level and easy tool change, it is perfect for efficient and flexible use in the workplace.
Loading...
Pritec Vaculyft E
SKU: 841000
Pritec Vaculyft E uses electric drive to keep a low noise level. Vaculyft E has hydraulic support legs that enable simple, quick and safe installation. The electric vacuum pump and hydraulics lift different types of objects. With a simple hand grip, you change tools and can lift everything from paving stones and slabs to curbstone, natural stone, lids and sacks.
Specifications
Product sheet
Product video
Specifications
| Specification | Detail |
|---|---|
| Vacuum pump | 3 phase, 400 Volt, 2.2 kW, 0.65 bar max. vacuum pressure |
| Hydraulic pump | 3 phase, 400 Volt, 0.37 kW, 210 bar max. |
| Lifting capacity (jib arm) | 140 kg (optional 2.75 m – 170 kg; at 2.48 m – 200 kg) |
| Transport dimensions | L 2473 x W 876.3 x H 2114 mm |
| Weight | 740 kg |
| Boom swing range | 360° with a working radius of 3.0 m |
| Speed | |
| Area of use | laying paving stones |
