AP Grader sheets type Twister

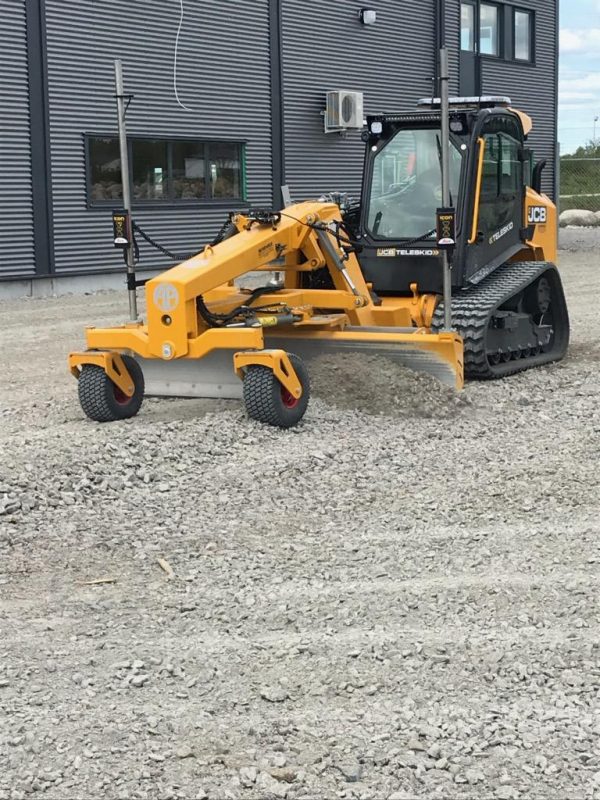

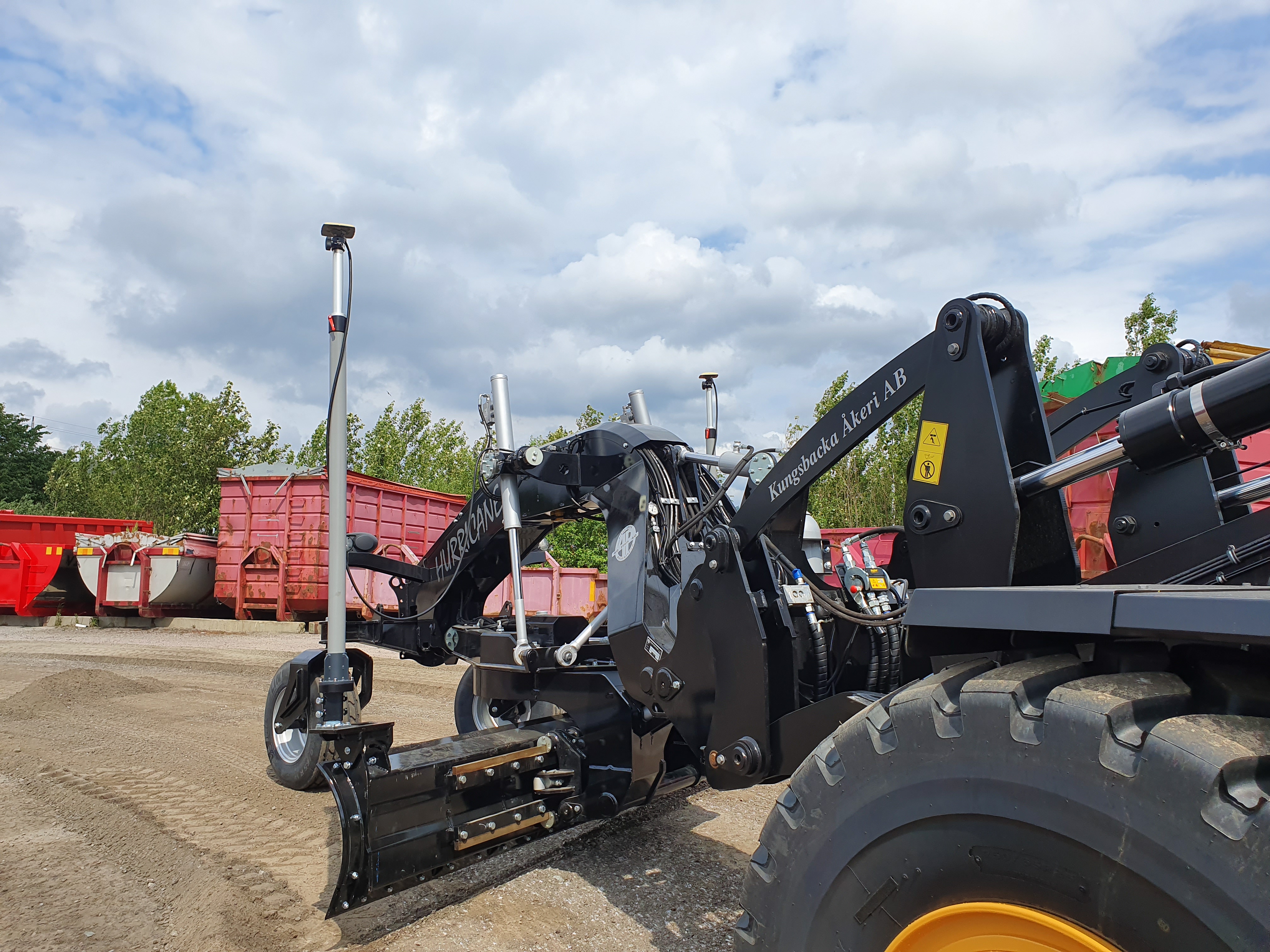

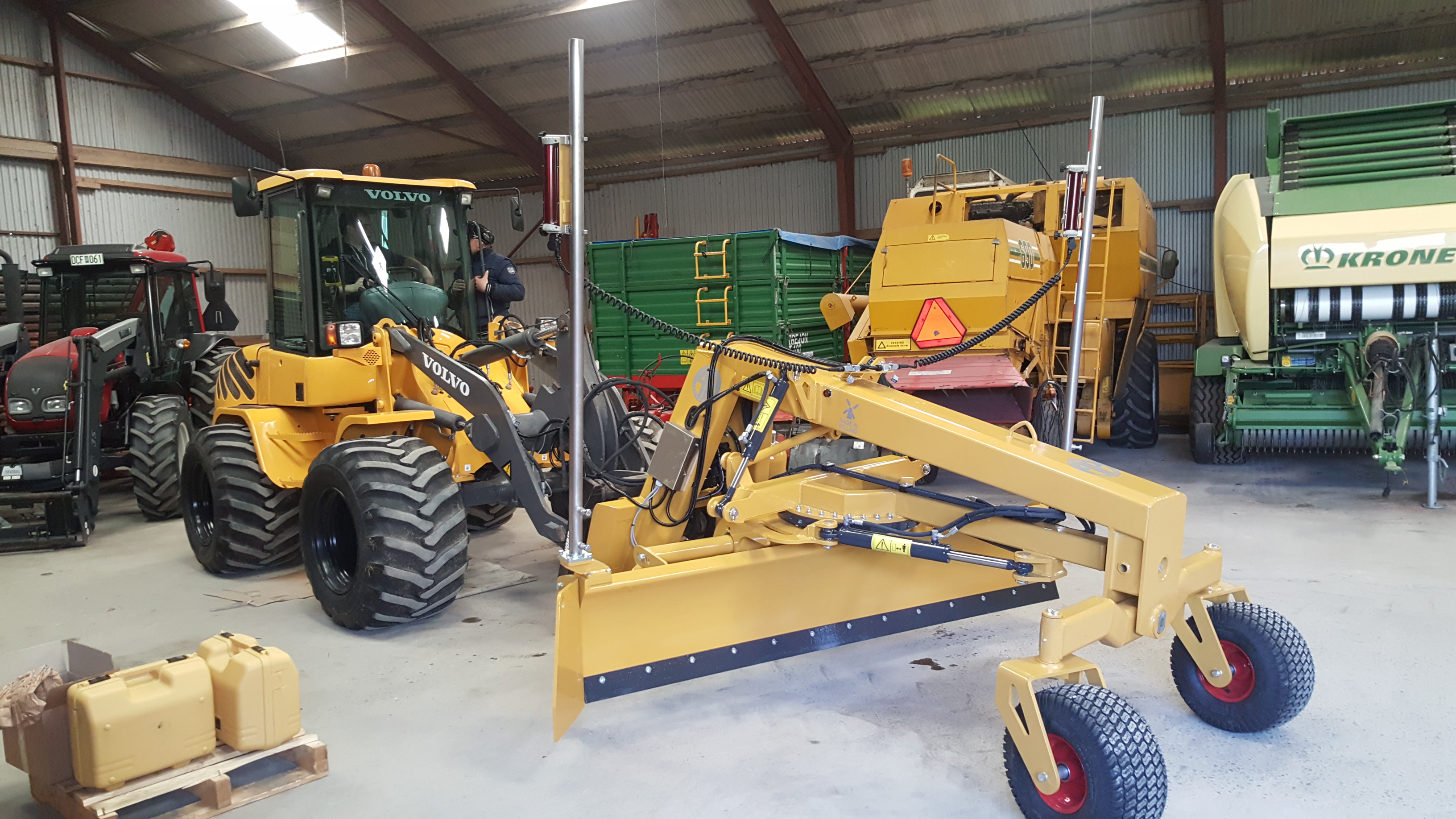

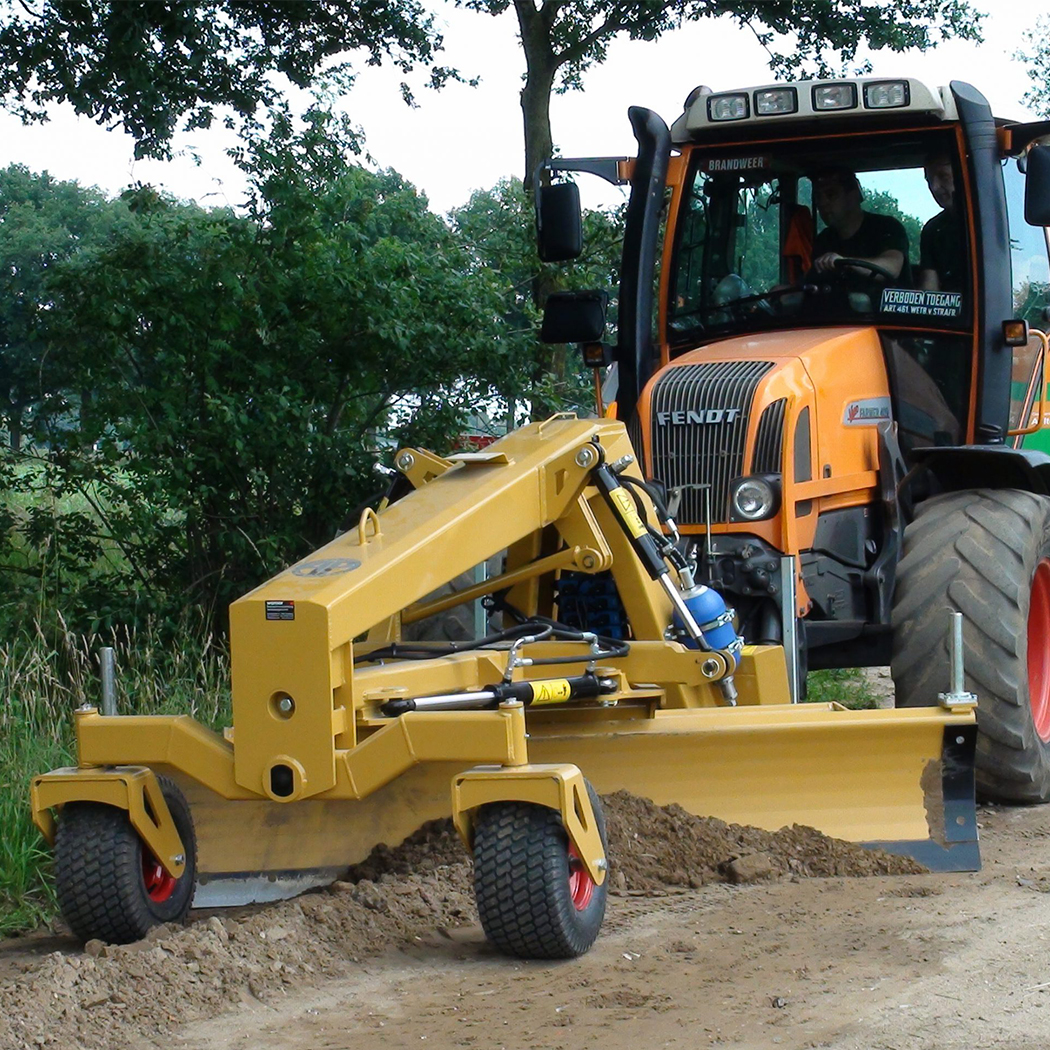

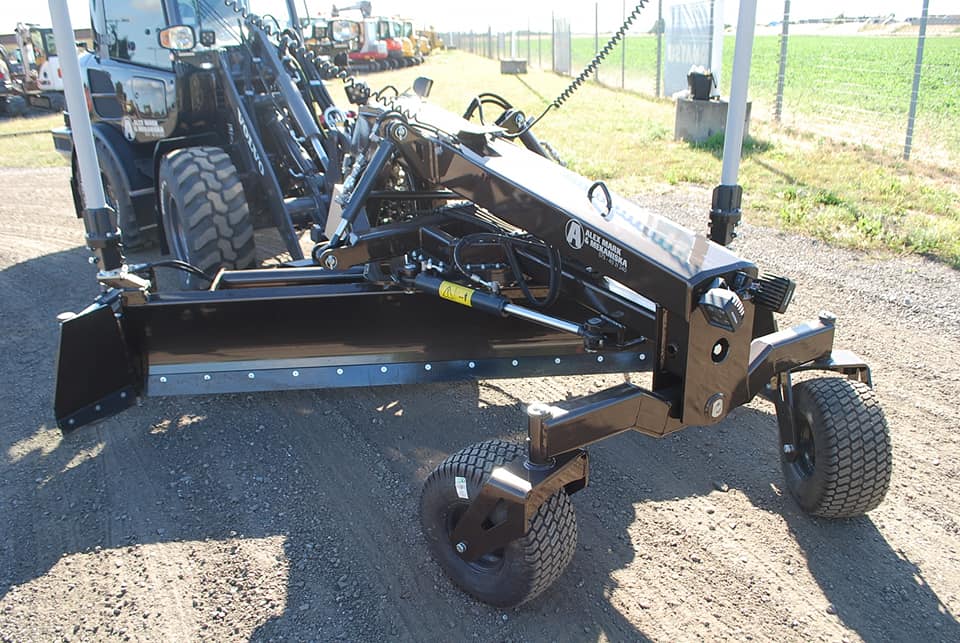

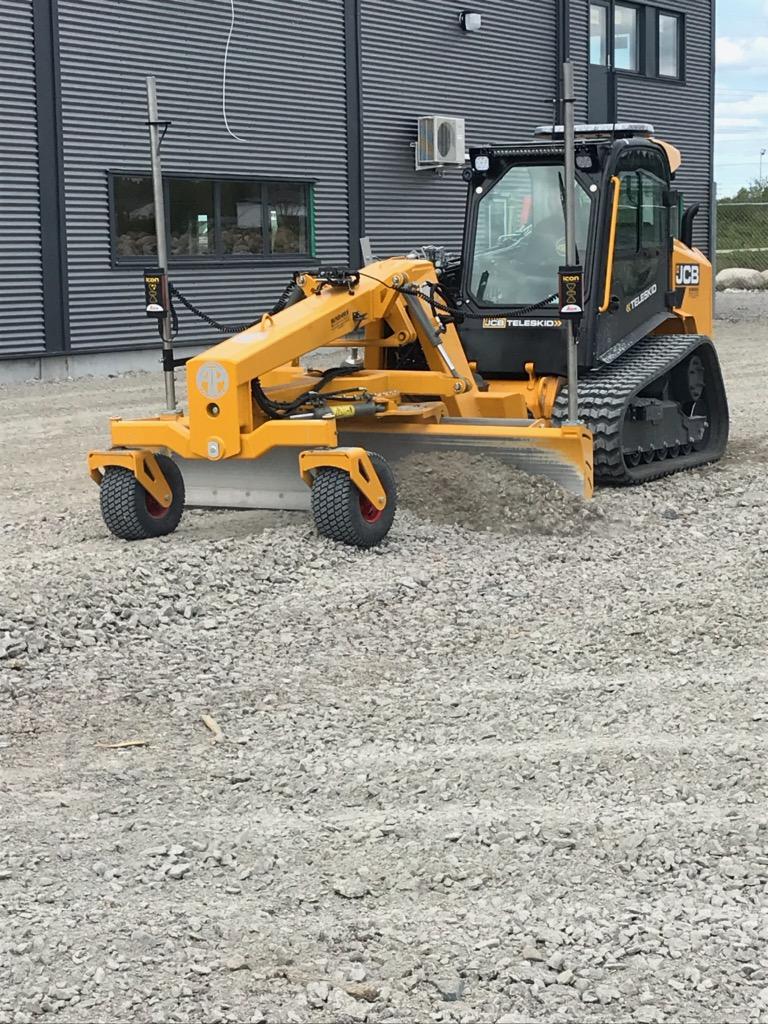

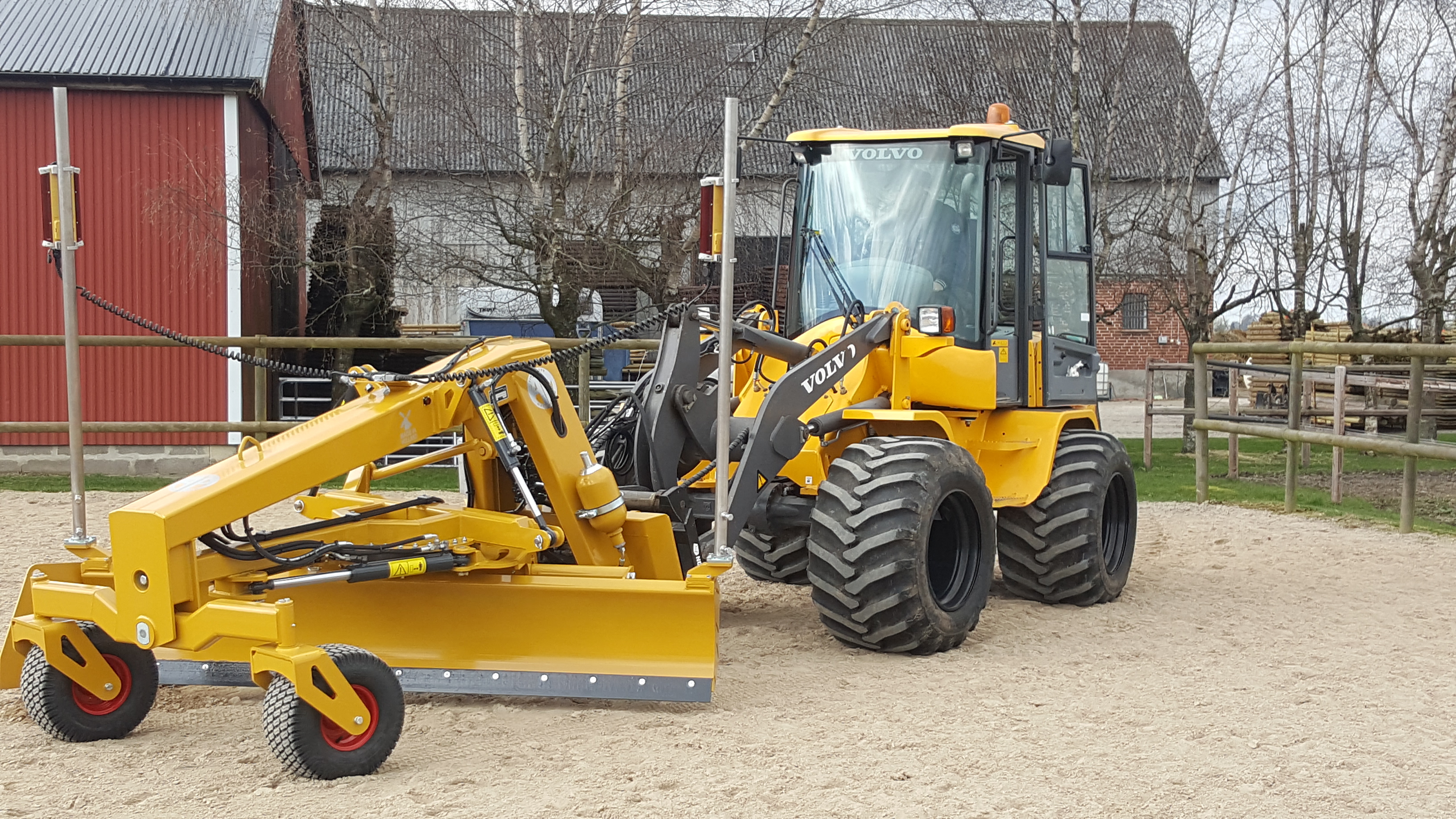

AP Grader blade type Twister is an ideal grader blade for compact loaders, medium wheel loaders and tractors. It has a rotation angle of 25/30 degrees left and right thanks to the industrial ball-bearing turntable. Available in widths from 160 to 280 cm, it excels in laser-guided subsoil leveling and grading.
Ideal for maintenance of sand and gravel roads in construction, forestry, orchards, recreation areas and unsealed municipal roads, the Twister ensures high driver comfort and minimal deviations by driving on the already leveled track. It enables quick and precise work input with easy depth adjustment and the ability to create a sloped profile in one pass.
- Cost-effective alternative to motor-driven planer blades
- Easy connection to all self-propelled vehicles
- Can be controlled manually, with laser or GPS
- Offers different options
- Provides an excellent view of the work
Specifications | Twister I | Twister II | Twister III |
---|---|---|---|
Wheel loader requirements | < 1.8 tonnes total weight | 1.5 – 3.6 tonnes total weight | 3.2 – 5.5 tonnes total weight |
Blade width (mm) | 1600/1800 | 2000/2200/2400 | 2400/2600/2800 |
Blade height (mm) | 400 | 450 | 450 |
Total length (mm) (without brackets) | 2110 | 2500 | 2500 |
Overall height (mm) | 1100 | 1300 | 1300 |
Wheelbase (mm) | 1100 | 1200 | 1200 |
Blade rotation angle | 25° l/r | 30° l/r | 30° l/r |
Knife height/thickness (mm) | 100×16 | 100×16 | 100×16 |
Lateral displacement (mm) | +300/-300 | +400/-400 | +400/-400 |
Cutting angle | -5/0/5/10° | -10/-5/0/5/10° | -10/-5/0/5/10° |
Lifting reach (mm) | 285 | 300 | 300 |
The cutting angle of the grader blade is adjustable in steps to achieve an optimal cutting angle on varying surfaces.

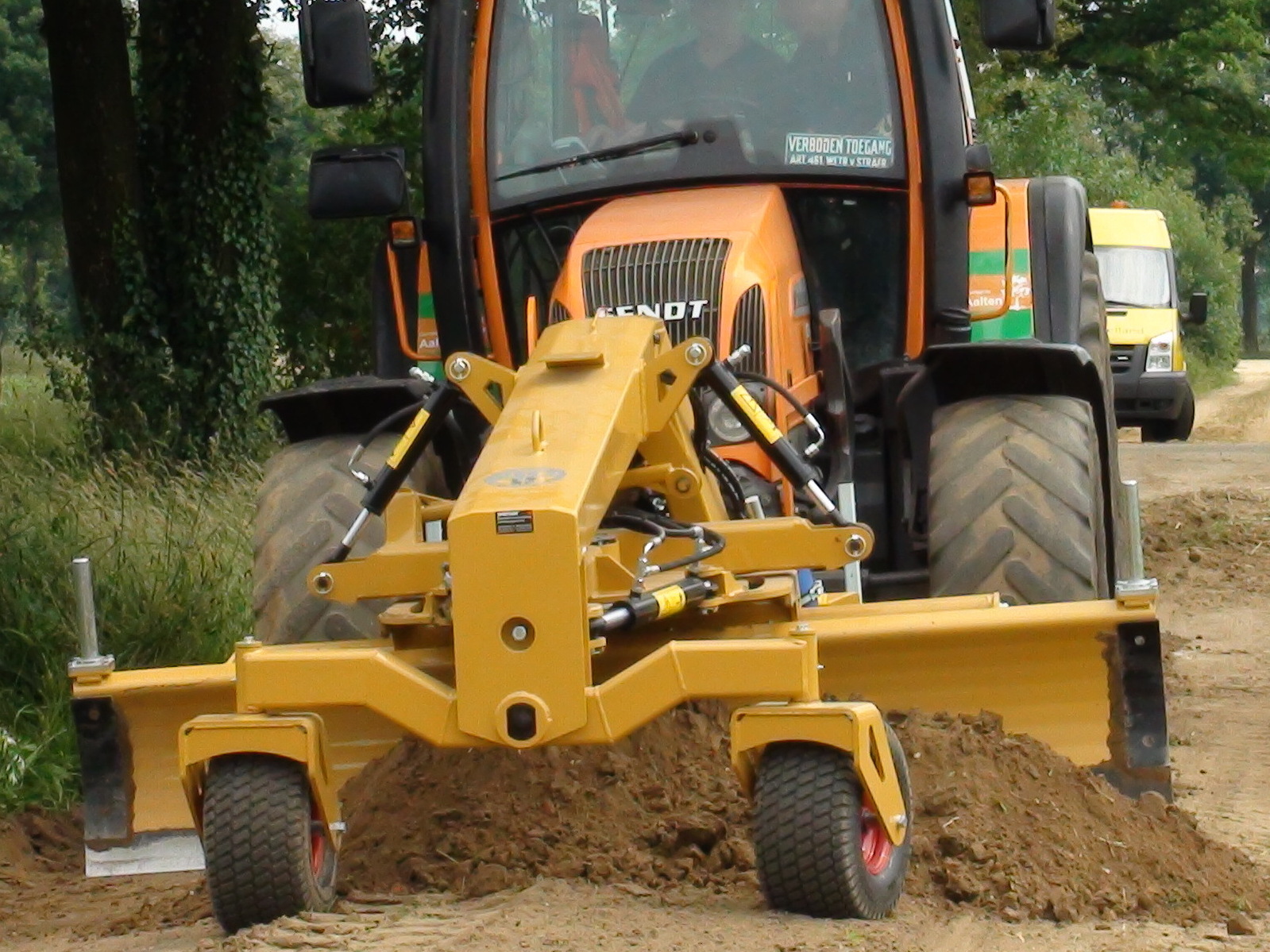

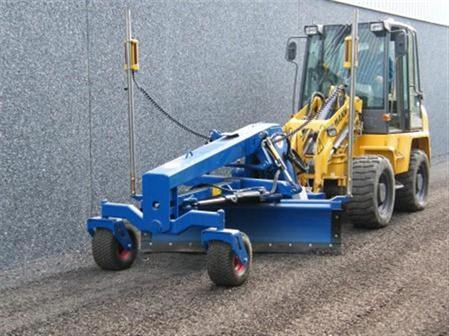

AP Twister III 2600mm
