Ground vibrator MINI VD 12P
Ground vibrator MINI VD 12P
Ground vibrator MINI VD 12P

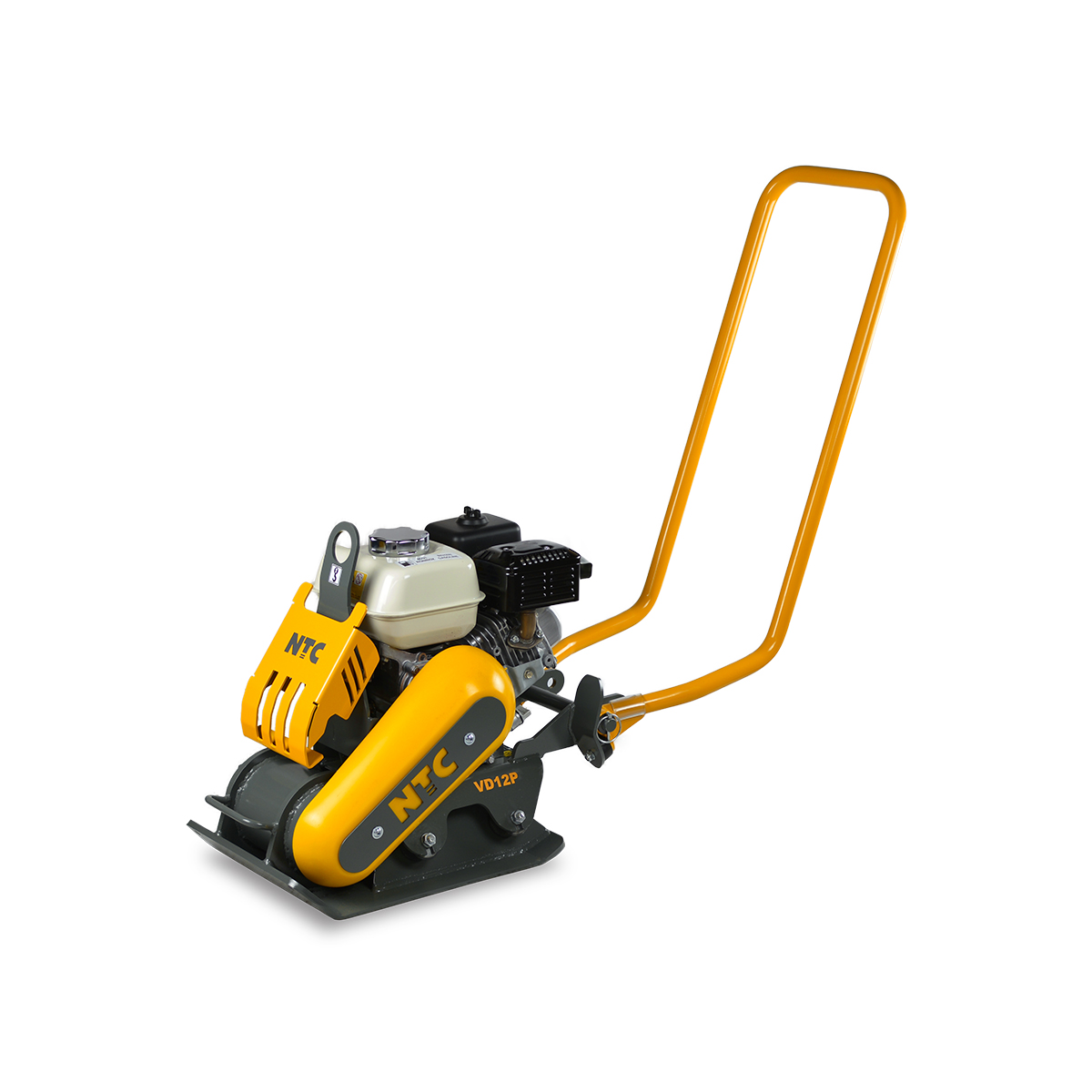

Soil vibrator MINI VD 12P is the ultimate solution for smaller compaction jobs that require precision, speed and easy handling. With a compact weight of only 60 kg and a powerful centrifugal force of 12 kN, this machine offers outstanding performance for small projects. In addition, the powerful Honda GX 120 engine, which meets EU Stage V requirements, ensures a net power of 2.6 kW and reliable operation in all working environments.
Furthermore, the working width of 330 mm is perfect for narrow areas, such as walkways, garden beds and minor road repairs. The two-stage vibration reduction minimizes vibrations, which improves working comfort and protects the user from prolonged exposure. In addition, the rounded edges of the plate are designed to prevent marks on asphalt. Therefore, it is an excellent choice for sensitive surfaces and paving.
To facilitate use, the VD 12P has both a folding handle and a central lifting eye, which makes the machine easy to transport and store. In addition, there are available accessories such as sprinkler kit and wheel kit, which makes the VD 12P even more flexible in different working conditions. With a speed of 25 m/min, you can be sure that the job is done quickly and efficiently.
In conclusion, the MINI VD 12P soil vibrator is the perfect partner for all small construction and maintenance projects where simplicity, quality and reliability are essential.
Benefits
- Compact and lightweight design of only 60 kg.
- Effective compression with centrifugal force of 12 kN.
- Honda GX 120 engine with low fuel consumption and high performance.
- Leaves no marks on asphalt thanks to rounded edges.
- Two-stage vibration reduction for increased user comfort.
- Easy to transport with central lifting eye and handling points.
- Compact working width of 330 mm for narrow areas.
Areas of use
- Small road works and repairs.
- Compaction of garden beds and gravel paths.
- Asphalting of smaller areas.
- Compaction during paving and tiling.
- Smaller construction and renovation projects in tight spaces.
| Parameter | Specification |
|---|---|
| Weight | 60 kg |
| Plate dimensions | 330 x 460 mm |
| Centrifugal force | 12 kN |
| Frequency | 100 Hz |
| Maximum speed | 25 m/min |
| Engine | Honda GX 120 |
| Fuel | Petrol |
| Effect | 2.6 kW |
| Water tank capacity | 5 liters |
| Sound level LpA,d | 88 + 2 dB |
| Sound level LWA,G | 101dB |
| Vibration ahvd | 11.3 + 4.5 m/s² |
| Working dimensions | L: 1030 mm, W: 330 mm, H: 1005 mm |
| Parameter | Specification |
|---|---|
| Weight | 60 kg |
| Plate dimensions | 330 x 460 mm |
| Centrifugal force | 12 kN |
| Frequency | 100 Hz |
| Maximum speed | 25 m/min |
| Engine | Honda GX 120 |
| Fuel | Petrol |
| Effect | 2.6 kW |
| Water tank capacity | 5 liters |
| Sound level LpA,d | 88 + 2 dB |
| Sound level LWA,G | 101dB |
| Vibration ahvd | 11.3 + 4.5 m/s² |
| Working dimensions | L: 1030 mm, W: 330 mm, H: 1005 mm |
